% Oxygen SensorGPR-11-32This sensor is available with following connectionsGPR-11-32RT: Phone JackGPR-11-32-4: 4-Pin connectionGPR-11-60-4: 4-Pin connection with 60 months life in airGPR-11-32 % oxyge
This sensor is available with following connections
GPR-11-32RT: Phone Jack
GPR-11-32-4: 4-Pin connection
GPR-11-60-4: 4-Pin connection with 60 months life in air

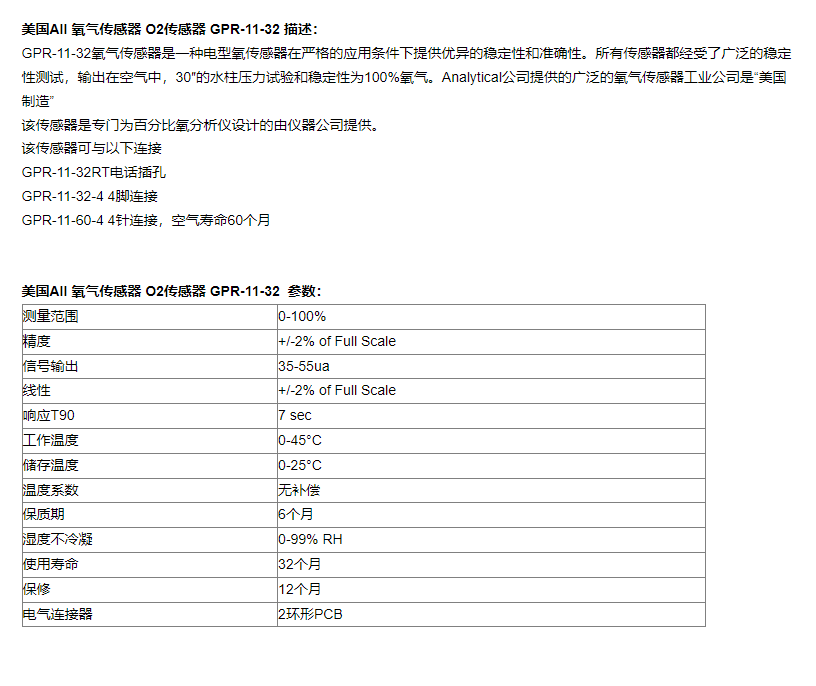

GPR-11-32 % oxygen sensor is a galvanic type oxygen sensor and offers excellent stability and accuracy under stringent applications. All sensors are subjected to the most extensive stability test, output in air, 30" of water column pressure test and stability at * oxygen. The widest range of oxygen sensors offered by Analytical Industries, Inc. are "Made in USA"
This sensor is specifically designed for percent oxygen analyzers offered by Advanced Instruments Inc.
技術參數
| Measuring Range | 0-* |
| Accuracy 1 | +/-2% of Full Scale |
| Signal Output 2 | 35-55uA |
| Linearity | +/-2% of Full Scale |
| Response T90 | 7 sec |
| Operating Temp | 0 to 45°C |
| Recommended Storage 3 | 0 to 25°C |
| Temperature Coefficient | Non Compensated |
| Shelf Life 4 | 6 months |
| Humidity Non-condensing | 0-99% RH |
| Expected Life 2 | 32 months |
| Warranty 5 | 12 months |
| Electrical Conn | 2 Ring PCB |
